•Icon based GUI with on-line help.
•Very precise solid modeller with advanced blending
features based on the PARASOLID kernel.

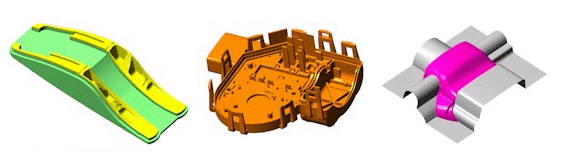

•Automatic surface to solid conversion for mould
parts.
•Single database for wireframe, solid and surface
geometry.
•Split line and and parting face calculations.
•Parameterised mechanical forms. •AUTO-Analysis-
Specific tools for component analysis and automatic
core & cavity generation.
•Standard interface options for external world
CAD data (IGES, DXF, DWG, VDA ). Optional Step,
Catia, Acis, Pro-E and Unigraphics translators.
•Integrated NURBS-based curves and surfaces with
solid forms.
|
